SLM-1000 High-Strength Nano Insulation Board
1000 °C high-strength nano insulation board for steel ladles, tundishes and industrial kiln walls. 30–50 % energy saving, vacuum-packed for export. — Suleiman Refractory.

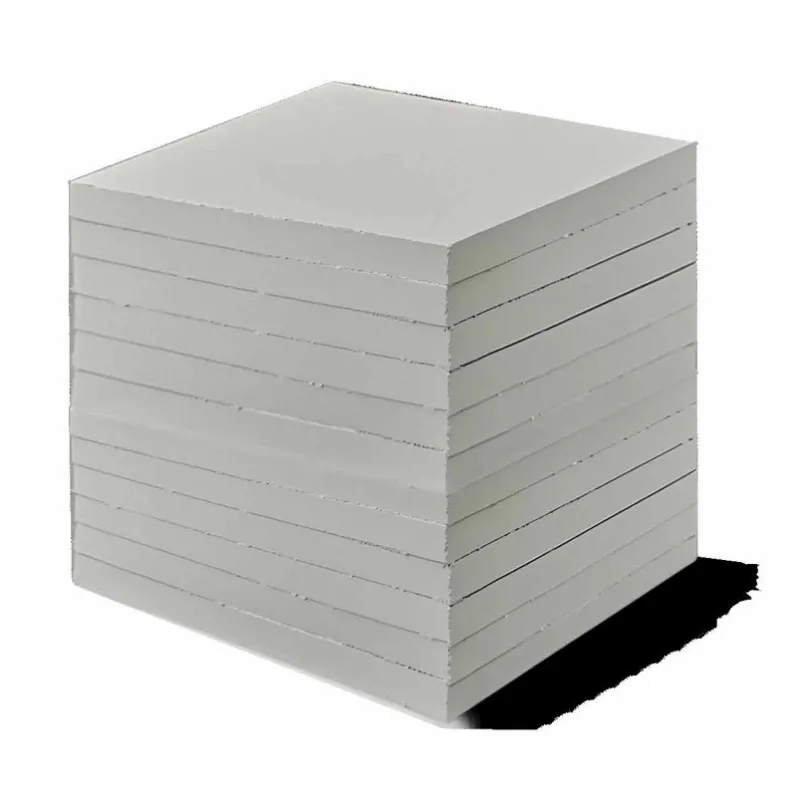

SLM-1000 High-Strength Nano Insulation Board is a next-generation microporous insulation panel engineered by Nantong Suleiman Refractory Co., Ltd. for service temperatures up to 1000 °C. It is widely used in steel ladle and tundish linings, petrochemical crackers, ceramic kiln walls, and industrial furnace backing, replacing traditional calcium silicate and ceramic-fiber boards.
Why SLM-1000
- Ultra-low thermal conductivity — 0.024 W/m·K at 600 °C, cutting shell heat loss by 30–50 %.
- Lightweight & high compressive strength — density 280–320 kg/m³ with ≥ 0.6 MPa cold-crushing strength, accepts anchor welding and machining.
- Clean, fiber-free — no respirable crystalline silica; safer handling than traditional boards.
- Export-ready vacuum pack — foil-sealed and palletized, saving ~40 % container volume.
Technical Data Sheet
Item | Unit | SLM-1000 Typical |
|---|---|---|
Classification temperature | °C | 1000 |
Bulk density | kg/m³ | 280–320 |
Thermal conductivity (600 °C) | W/m·K | ≤ 0.024 |
Cold crushing strength | MPa | ≥ 0.6 |
Linear shrinkage (1000 °C × 24 h) | % | ≤ 2.0 |
Standard thickness | mm | 10 / 15 / 25 / 30 / 40 / 50 |
Standard size | mm | 600 × 400 (custom on request) |
Typical Applications
- Steel ladle permanent lining & tundish cover
- Reheating & walking-beam furnace walls
- Ethylene cracking furnace backup insulation
- Ceramic & sanitary-ware kiln car liners
- Glass furnace regenerator walls
Supply & Logistics
- MOQ: 5 m³
- Lead time: 7–10 days stock; 15–20 days custom
- Packaging: vacuum foil bag + wooden pallet
- Port: Shanghai / Nantong, China
- Terms: FOB / CFR / CIF / EXW
Send your application, max temperature and dimensions — quote within 24 hours.
